Durable Brass Wire Mesh For Improved Electrical Performance In Automotive Aerospace

standard packaging:	Confezionato con carta impermeabile o sacchetto di tessitura, in pallet o in custodia di legno.
Delivery period:	7 giorni
Metodo di pagamento:	T/T,D/P
Supply Capacity:	30 tonnellate al giorno

Informazioni di dettagli

Descrizione di prodotto

Informazione dettagliata

Luogo di origine

Cina

Marca

Senphus

Certificazione

ISO9001

Luogo o origine:

Cina

Materiale:

Filtro di rame

Stile tessuto:

Tessuti semplici

Griglia:

6-60 maglie

Diametro:

0.7-0.05 mm

Larghezza del rotolo:

0.6-1.3mm

Lunghezza del rotolo:

10-100M

Imballaggi particolari:

carta kraft interna, tessuto di plastica esterno, inserito in pallet o cassa di legno

Utilizzatori:

EMI/RFI Scudo e prodotti elettrici

Evidenziare:

Automotive Brass Wire Mesh

Aerospace Brass Wire Mesh

Durable Brass Wire Mesh

Descrizione di prodotto

Durable Brass Wire Mesh For Improved Electrical Performance In Automotive And Aerospace

Brass wire mesh is made from an alloy of copper and zinc, combining excellent formability with good corrosion resistance. It is known for its bright gold-like appearance and moderate strength, making it suitable for both functional and decorative applications. Brass mesh is commonly used for insect screens, sieves, and strainers in industries like mining, construction, and food processing. Its good electrical and thermal conductivity make it a popular choice in electronics and heat transfer applications. In architecture and design, it’s favored for its warm, appealing color and ease of fabrication. With a balance of mechanical strength and aesthetic appeal, brass wire mesh is a versatile and widely used material across many sectors.

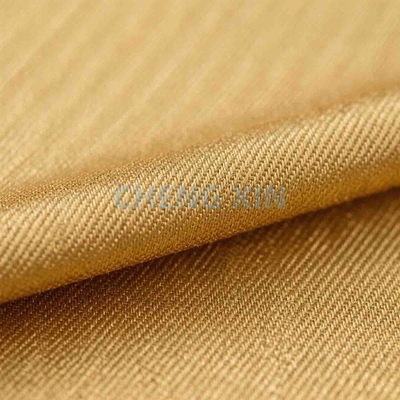

Durable Brass Wire Mesh For Improved Electrical Performance In Automotive Aerospace 0

Technical data:

1 Technical requirements for weaved nickel mesh

1.1 Technical requirements for nickel wire

a. Chemical composition Nickel content >99.5%.

b. Diameter tolerance of nickel wire ±0.005mm

c. Nickel wire tensile strength >400Mpa, elongation >25%

1.2 Mesh size and mesh uniformity of nickel mesh conform to GB/T 17492

1.3 The allowable number of major defects of nickel mesh (holes, cracks, half weft, thin and dense channels, skip wire, loose weft/warp wire, warp loose channels) zero defect.

1.4 The maximum deviation of the overall size of the mesh is ±0.5%

1.5 The flatness of mesh is less than 5mm/2.5m

Dimensions and tolerance

Dimensions	≥0.03-0.1	≥0.1-0.3	≥0.3-0.6	≥0.6-1.0	≥1.0-3.0	≥3.0-6.0
Tolerance	±0.002	±0.002	±0.005	±0.007	±0.008	±0.02

Mechanical properties

Dimensions	Condition	Elongation(L0=100mm)	Tensile strength (MPa)
0.03-0.1	M	≥20	≥400
0.11-0.2	M	≥20	≥400
0.21-0.48	M	≥30	≥400

Brass Wire Mesh: Key Features

✅ Excellent Electrical Conductivity
Ideal for EMI/RFI shielding, grounding, and electronic applications.

✅ Thermal Conductivity
Dissipates heat effectively in various industrial processes.

✅ Corrosion Resistance
Resists corrosion in non-oxidizing environments and natural elements.

✅ Antimicrobial Properties
Naturally inhibits bacterial growth, suitable for sanitary applications.

✅ Malleability and Formability
Easily shaped and fabricated for custom applications.

✅ Attractive Appearance
Warm reddish color, also used for architectural and decorative purposes.

✅ Fine Filtration Capabilities
Effective for sieving and filtration in chemical, food, and industrial applications.

Brass Wire Mesh Applications

Filtration & Sieving
Used in chemical, food, and pharmaceutical industries for filtering liquids, powders, and gases.
Aerospace & Electronics
Applied in shielding electronic equipment from electromagnetic interference (EMI).
Musical Instruments
Used in reed making for woodwind instruments, leveraging its resilience and acoustic properties.
Marine & Offshore
Ideal for use in marine environments due to corrosion resistance and anti-sparking features.
Mining & Oil/Gas
Utilized in screening and separation of fine materials; also as anti-spark protective screens in hazardous areas.
General Industrial
Employed as insect screens, architectural cladding, and in automotive and mechanical components.

Woven Brass Wire Mesh Screen Specification

Mesh	Wire Dia.(mm)			Opening (mm)
	SWG	MM	Inch
6	22	0.711	0.028	3.522
8	23	0.61	0.024	2.565
10	25	0.508	0.02	2.032
12	26	0.457	0.018	1.66
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.84
24	0	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.247	0.011	0.573
32	33	0.254	0.01	0.54
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.404
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60×50	36	0.193	0.0076
60×50	37	0.173	0.0068
60	37	0.173	0.0068	0.25

Hightop Metal Mesh manufactures two types of woven brass mesh screens:

Common brass – 65% copper and 35% zinc.
Red brass – 80% copper and 20% zinc

Durable Brass Wire Mesh For Improved Electrical Performance In Automotive Aerospace 1
